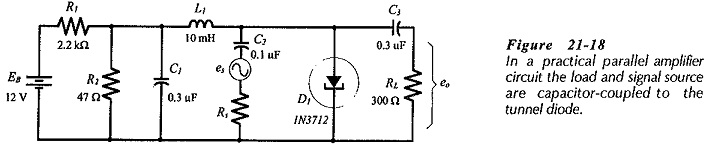

Tunnel Diode Parallel Amplifier Circuit: For operation as an amplifier, a tunnel diode must be biased to the center of its negative resistance region. Figure 21-17(a) shows the basic circuit…

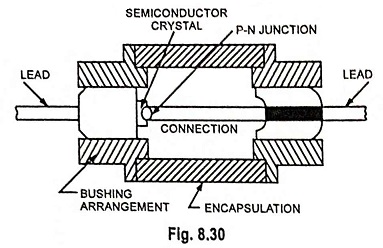

Tunnel Diode Operation and Characteristics: Tunnel Diode Operation - A tunnel diode (sometimes called an Esaki diode after its inventor, Leo Esaki) is a two-terminal negative resistance device that can…
