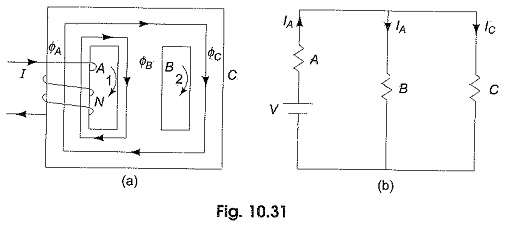

Parallel Magnetic Circuit: We have seen that a series magnetic circuit carries the same flux and the total mmf required to produce a given quantity of flux is the sum…

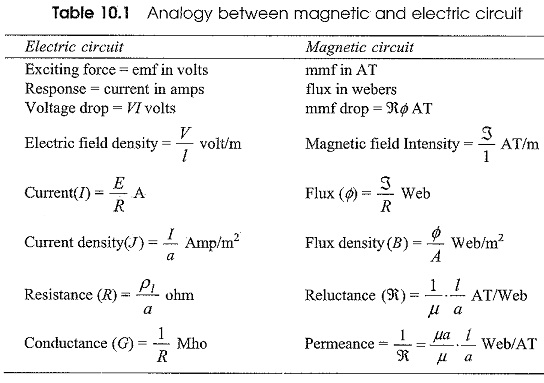

Difference Between Electric Circuit and Magnetic Circuit: A Difference Between Electric Circuit and Magnetic Circuit are shown in Figs. 10.27(a) and (b) respectively. Figure 10.27(a) represents an electric circuit with…
