Digital to Analog Converter Circuit Diagram: The basic Digital to Analog Converter Circuit Diagram using Op Amp is shown in Fig. 17.18(a). The input signal is applied to the inverting…

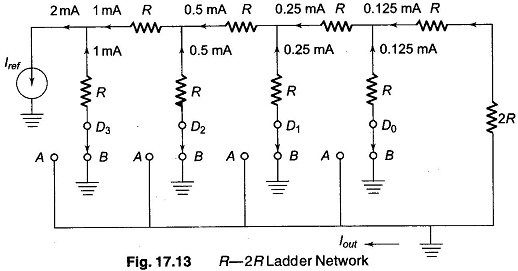

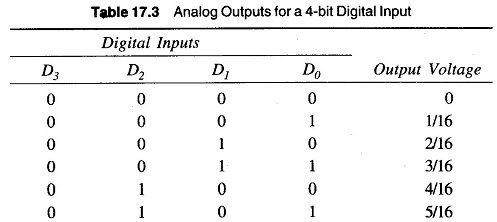

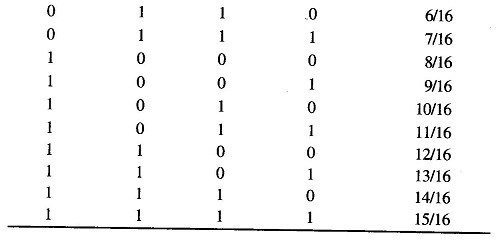

Ladder Type Converter D/A: Looking into any load from the left side we always see a resistor R. Similarly looking from the right side for any load, one always sees…
