Current Controlled Current Source (CCCS) Circuit:

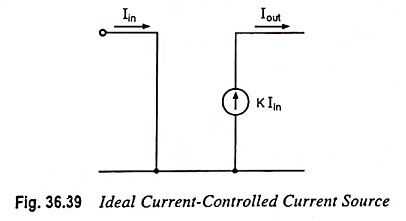

An ideal form of a Current Controlled Current Source (CCCS) Circuit by an input current is shown in Fig. 36.39. Such a circuit provides an output current dependent on the input current.

Current Controlled Current Source (CCCS) Circuit

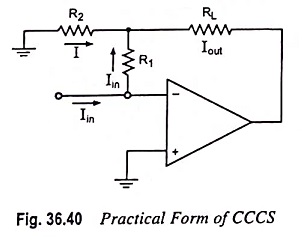

A practical form of the circuit is built using an op-amp, as shown in Fig. 36.40.

Current Controlled Current Source (CCCS) Circuit

Output current,
