Current Controlled Voltage Source (CCVS) Circuit:

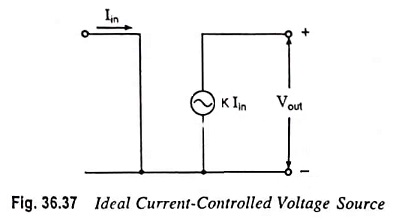

An ideal form of Current Controlled Voltage Source (CCVS) Circuit providing an output voltage controlled by an input current is shown in Fig. 36.37.

Current Controlled Voltage Source (CCVS) Circuit

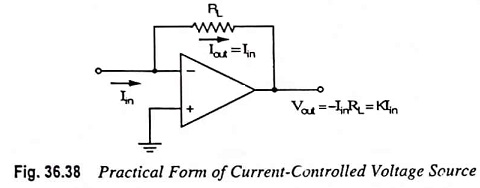

The output voltage Vout is dependent on the input current Iin. A practical form of the circuit is built using an op-amp as shown in Fig. 36.38.

Current Controlled Voltage Source (CCVS) Circuit

The output voltage is seen to be Vout = -IinRL = KIin
