Rotate Instruction in 8086 with example:

The Rotate Instruction in 8086 with example are namely

  • ROL
  • ROR
  • RCL
  • RCR

ROL Instruction : ROL destination, count.

This Rotate Instruction in 8086 with example all bits in a specified byte or word to the left some number of bit positions. MSB is placed as a new LSB and a new CF.

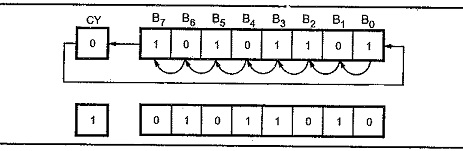

Diagram shows ROL instruction for byte rotation.

Rotate Instruction in 8086 with example

The destination can be a byte or a word. It can be in a register or in a memory location. The number of shifts are indicated by count. If number of shifts required is one you can place 1 in the count position. If number of shifts are greater than 1 then shift count must be loaded in CL register and CL must be placed in the count position of the instruction.

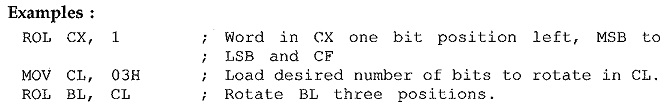

Rotate Instruction in 8086 with example

ROR Instruction : ROR destination, count.

This Rotate Instruction in 8086 with example all bits in a specified byte or word to the left some number of bit positions. LSB is placed as a new MSB and a new CF.

The destination can be a byte or a word. It can be in a register or in a memory location. The number of shifts are indicated by count. If number of shifts required is one, you can place 1 in the count position. If number of shifts are greater than 1 then shift count must be loaded in CL register and CL must be placed in the count position of the instruction.

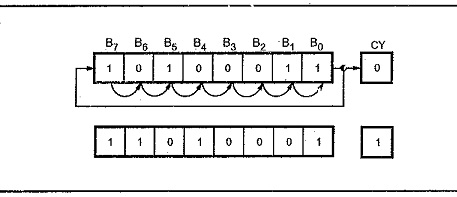

Diagram shows ROR instruction for byte rotation.

Rotate Instruction in 8086 with example

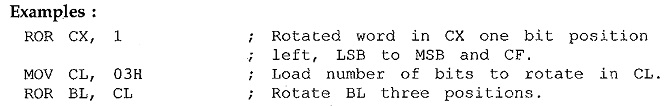

Rotate Instruction in 8086 with example

RCL Instruction : RCL destination, count.

This Rotate Instruction in 8086 with example all of the bits in a specified word or byte some number of bit positions to the left along with the carry flag. MSB is placed as a new carry and previous carry is placed as a new LSB.

The destination can be a byte or a word. It can be in a register or in a memory location. The number of shifts are indicated by count. If number of shifts required is one, you can place 1 in the count position. If number of shifts are greater than 1 then shift count must be loaded in CL register and CL must be placed in the count position of the instruction.

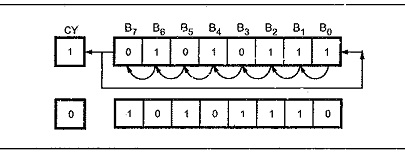

Diagram shows RCL instruction for byte rotation.

Rotate Instruction in 8086 with example

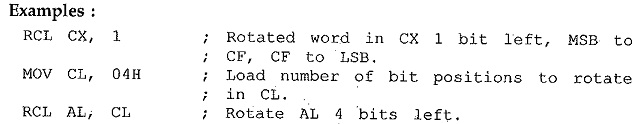

Rotate Instruction in 8086 with example

RCR Instruction : RCR destination, count.

This Rotate Instruction in 8086 with example all of the bits in a specified word or byte some number of bit positions to the left along with the carry flag. LSB is placed as a new carry and previous carry is placed as a new MSB.

The destination can be a byte or a word. It can be in a register or in a memory location. The number of shifts are indicated by count. If number of shifts required is one you can place 1 in the count position. If number of shifts are greater than 1 then shift count must be loaded in CL register and CL must be placed in the count position in the instruction.

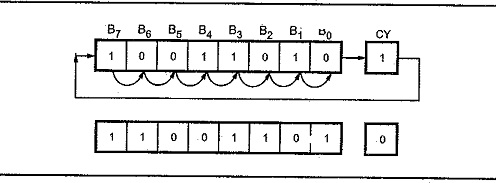

Diagram shows RCR instruction for byte rotation.

Rotate Instruction in 8086 with example

Rotate Instruction in 8086 with example
