Half Section in Four Terminal Network:

The Half Section in Four Terminal Network can be obtained by splitting symmetrical T and π networks into two identical networks. The half sections obtained by splitting shunt arm of symmetrical T network in two equal impedances and series arm of symmetrical π network in two equal impedances are identical as shown in the Fig. 8.24 (a) and (b).

Half Section in Four Terminal Network

Consider a half section as shown in the Fig. 8.24. As half section is of asymmetrical type, we have to analyze this network on the basis of iterative impedances and image impedances separately.

Iterative Impedances (Z′0):

By the property of asymmetrical network, the iterative impedances at the two ports of the network are of different value and they are represented by Z′01 and Z′02.

Half Section in Four Terminal Network

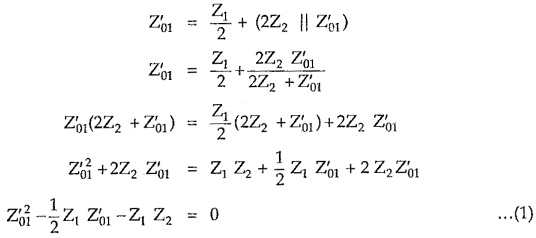

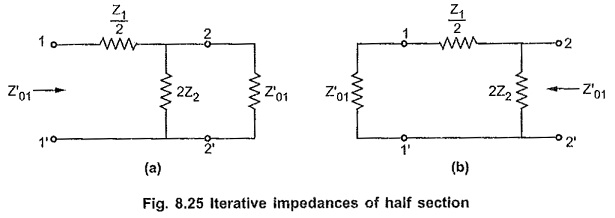

Consider Fig. 8.25 (a),

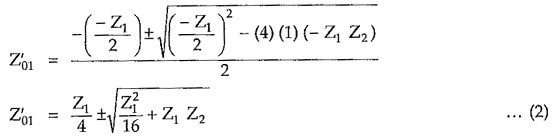

Finding roots of quadratic equation,

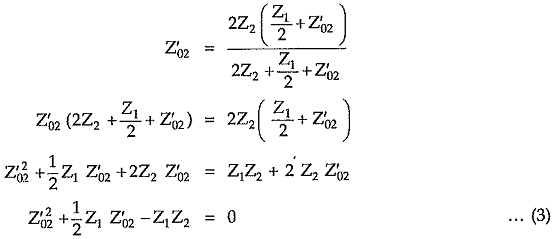

Consider Fig. 8.25 (b),

Find roots of above equation we can write,

Image Impedances (Zi):

For any asymmetrical network, the image impedance at any port is the geometric mean of open and short circuit impedances at that port.

If Zi1 is the image impedance at port 1, then it is given by

Half Section in Four Terminal Network

Similarly if Zi2 is the image impedance at port-2, then it is given by

Half Section in Four Terminal Network

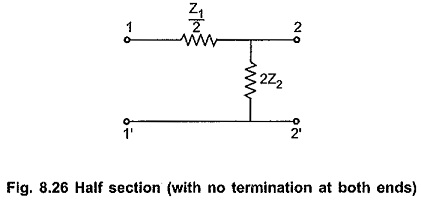

Consider a half section without any termination as shown in the Fig. 8.26.

Half Section in Four Terminal Network

The impedances at terminals 1 – 1′ with terminals 2 – 2′ open and short circuited are represented by Z1OC and Z1SC respectively. These impedances are given by

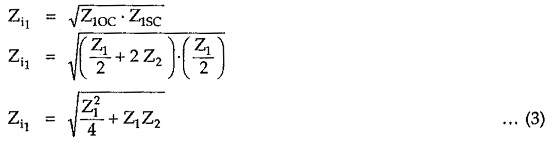

Thus, image impedance Zi1 at port 1 is given by,

Half Section in Four Terminal Network

The impedances at terminals 2 – 2′ with terminals 1 – 1′ open and short circuited are represented by Z2OC and Z2SC respectively. These impedances are given by

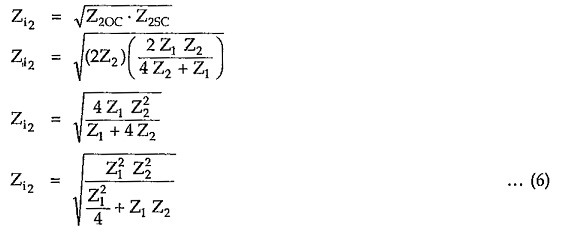

Thus, image impedance Zi2 at port 2 is given by,

Half Section in Four Terminal Network

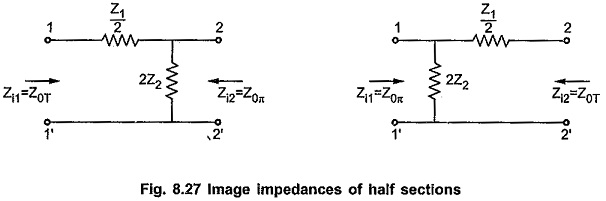

From equations (3) and (6) it is clear that the image impedances at port 1 and port 2 are the characteristic impedances of symmetrical T and π networks having total series and shunt arm impedances as Z1 and Z2 respectively. Because of this property of the half section, it can be used to match a T section with a π section if both are having same series and shunt arm impedances.

Half Section in Four Terminal Network
