Audio Frequency Transformer

Audio Frequency Transformer:

It is used at the output stage of Audio Frequency Transformer electronic amplifier for matching the load to the output impedance of the power amplifier stage. Here the load is fixed but the frequency is variable over a band (audio, 20 Hz to 20 kHz), the response being the ratio V2/V1. A flat frequency response over the frequency band of interest is most desirable. The corresponding phase angle (angle of V2 w.r.t. V1) is called phase response. A small angle is acceptable.

The Audio Frequency Transformer is used in electronic circuits (control, communication, measurement etc.) for stepping up the voltage or impedance matching. They are normally small in size and have iron cores. It is essential that distortion should be as low as possible.

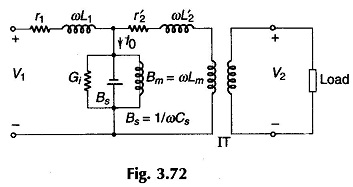

Figure 3.72 shows the exact circuit model of a transformer with frequency variable over a wide range. Here the magnetizing shunt branch is drawn between primary and secondary impedances (resistance and leakage reactance). Also represented is the shunting effect of transformer windings stray capacitance Cs. In the intermediate frequency (IF) range the shunt branch acts like an open circuit and series impedance drop is also negligibly small such that V2/V1 remains fixed (flat response) as in Fig. 3.73.

Audio Frequency Transformer

Audio Frequency Transformer

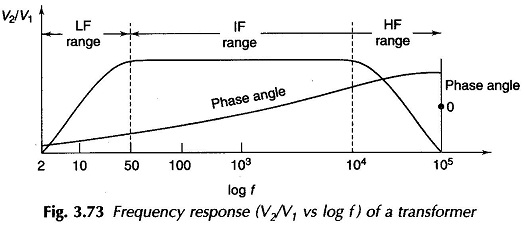

In the LF (low frequency) region the magnetizing suceptance is low and draws a large current with a consequent large voltage drop in (r1 + j ωL1). As a result V2/V1 drops sharply to zero (at dc Bm = 0) (Fig. 3.73). In the HF (high frequency) region Bs = 1/ω Cs (stray capacitance susceptance) has a strong shunting effect and V2/V1 drops off as in Fig. 3.73, which shows the complete frequency response of a transformer on logarithmic frequency scale.

Grounding Transformer:

In case the neutral of the power transformer is not available for grounding (e.g. when a Δ—Δ transformer is used), a special Y—Δ transformer is employed only for neutral grounding. Such a transformer is called a grounding transformer and it is a step down transformer. The star connected primaries are connected to the system and its neutral is grounded. The secondaries are in delta and generally do not supply any load but provide a closed path for triplen harmonic currents to circulate in them. Under balanced conditions the current in a grounding transformer is its own exciting current. Under fault conditions (such as LG fault) large current may flow in it. Hence a grounding transformer should be of sufficient rating to withstand the effects of LG (line to ground) faults. Transformers with ‘zigzag’ connection are sometimes employed as grounding transformers.
