Power Angle Equation of Synchronous Machine:

Power Angle Equation of Synchronous Machine – In solving the swing equation (Eq. (12.10)), certain simplifying assumptions are usually made. These are:

  1. Mechanical power input to the machine (Pm) remains constant during the period of electromechanical transient of interest. In other words, it means that the effect of the turbine governing loop is ignored being much slower than the speed of the transient. This assumption leads to pessimistic result—governing loop helps to stabilize the system.
  2. Rotor speed changes are insignificant—these have already been ignored in formulating the swing equation.
  3. Effect of voltage regulating loop during the transient is ignored, as a consequence the generated machine emf remains constant. This assumption also leads to pessimistic results—voltage regulator helps to stabilize the system.

Before the swing equation can be solved, it is necessary to determine the dependence of the electrical power output (Pe) upon the rotor angle.

Simplified Machine Model:

For a nonsalient pole machine, the per phase induced emf-terminal voltage equation under steady conditions is

Power Angle Equation of Synchronous Machine

where

and usual symbols are used.

Under transient condition

but

Equation (12.19) during the transient modifies to

Power Angle Equation of Synchronous Machine

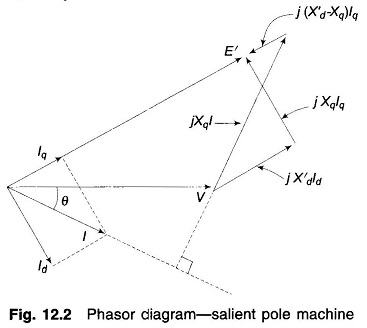

The phasor diagram corresponding to Eqs. (12.21) and (12.22) is drawn in Fig. 12.2.

Power Angle Equation of Synchronous Machine

Since under transient condition, X′d < Xd but Xq remains almost unaffected, it is fairly valid to assume that

Power Angle Equation of Synchronous Machine

Equation (12.22) now becomes

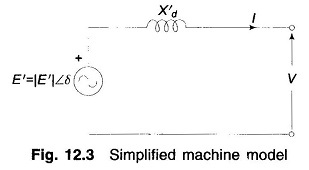

The Power Angle Equation of Synchronous Machine model corresponding to Eq. (12.24) is drawn in Fig. 12.3 which also applies to a cylindrical rotor machine where X′d = X′q = X′s(transient synchronous reactance)

Power Angle Equation of Synchronous Machine

The simplified Power Angle Equation of Synchronous Machine of Fig. 12.3 will be used in all stability studies.

Power Angle Curve of Synchronous Machine:

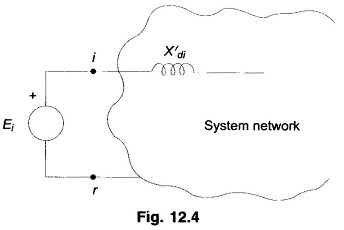

For the purposes of stability studies |E′|, transient emf of generator motor, remains constant or is the independent variable determined by the voltage regulating loop but V, the generator determined terminal voltage is a dependent variable. Therefore, the nodes (buses) of the stability study network pertain to the emf terminal in the machine model as shown in Fig. 12.4, while the machine reactance (X′d) is absorbed in the system network as different from a load flow study. Further, the loads (other than large synchronous motors) will be replaced by equivalent static admittances (connected in shunt between transmission network buses and the reference bus). This is so because load voltages vary during a stability study (in a load flow study, these remain constant within a narrow band).

Power Angle Curve of Synchronous Machine

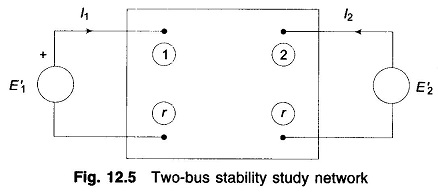

For the 2-bus system of Fig. 12.5

Power Angle Equation of Synchronous Machine

Power Angle Equation of Synchronous Machine

Complex power into bus is given by

At bus 1

Power Angle Equation of Synchronous Machine

But

Since in solution of the swing equation only real power is involved, we have from Eq. (12.26)

Power Angle Equation of Synchronous Machine

A similar equation will hold at bus 2.

Let

Power Angle Equation of Synchronous Machine

and

Then Eq. (12.27) can be written as

Power Angle Equation of Synchronous Machine

For a purely reactive network

Hence

Power Angle Equation of Synchronous Machine

where

Power Angle Equation of Synchronous Machine

where

  • X = transfer reactance between nodes (i.e., between E′1 and E′2)

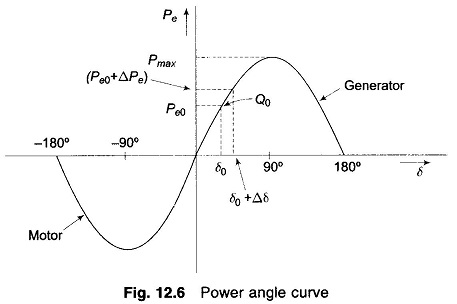

The graphical plot of power angle equation (Eq.(12.29)) is shown in Fig. 12.6.

Power Angle Curve of Synchronous Machine

The swing equation (Eq. (12.10)) can now be written as

Power Angle Equation of Synchronous Machine

which, as already stated, is a non-linear second-order differential equation with no damping.
