Fiber Losses

Fiber Losses:

Energy losses and signal degradation in Fiber Losses can be attributed to a variety of causes, some of which have been mentioned previously. To add to this list:

1. Light scattering (Rayleigh Scattering) is caused by imperfections in the fiber. It affects each wavelength differently and can be stated as 1/4λ.

This scattering results in the following Fiber Losses:

2.5 dB at 820 nm

0.24 dB at 1300 nm

0.012 dB at 1550 nm

2. Absorption of light energy due to the heating of ion impurities results in a dim­ming of light at the end of the fiber.

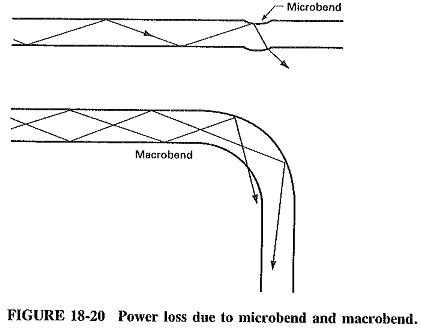

3. Microbend loss, due to small surface irregularities in the cladding, causes light to be reflected at angles where there is no further reflection.

4. Macrobend is a bend in the entire cable which causes certain modes not to be reflected and therefore causes loss to the cladding (see Figure 18-20).

Fiber Losses

5. Attenuation is the loss of optical energy as it travels through the fiber. This Fiber Losses is measured in decibels per kilometer. The attenuation losses vary from 300 dB/km for inexpensive fiber to as low as 0.21 dB/km for high-quality single-mode fibers. Attenuation values also vary from one wavelength to another. In certain wave­lengths, almost no attenuation occurs; these wavelengths are called windows.

Proper use of fibers as light transmitters requires an in-depth understanding of the fiber material being used. To ensure the most efficient use of a fiber, the light source must emit light in the low-loss regions of the fiber chosen.
