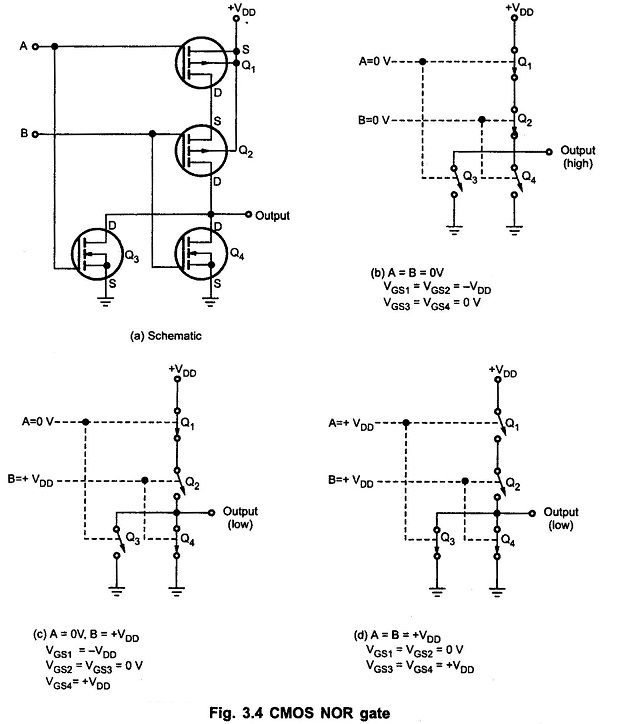

CMOS NOR Gate Circuit: Fig. 3.4 shows 2-input CMOS NOR Gate Circuit. Here, P-channel MOSFETs Q1 and Q2Â are connected in series and N-channel MOSFETs Q3 and Q4Â are connected in parallel.…
