Positive High Voltage High Current Regulator

Positive High Voltage High Current Regulator:

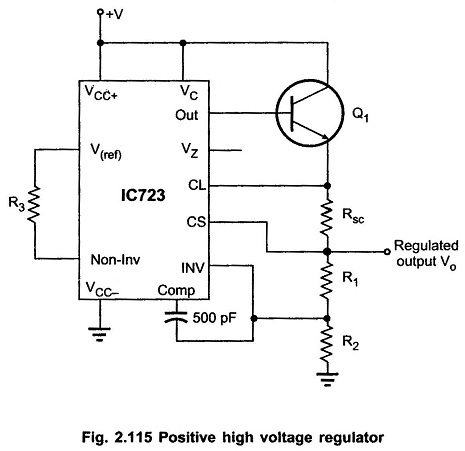

Positive High Voltage High Current Regulator – For this type, output voltage from +7V to +37V and load current IL > 150 mA. For this a external transistor Q1 is connected, as shown in the Fig. 2.115.

Positive High Voltage High Current Regulator

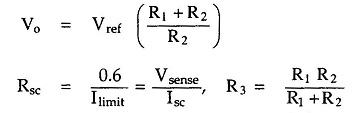

For this different expressions are similar to basic high voltage regulator and reproduced for the convenience.

Positive High Voltage High Current Regulator

While the power dissipation of transistor Q1 and the IC is given by the same expressions as given by the equations (5) and (6).
